How to Measure a Frame: Step-by-Step Measurement Guide
To measure a frame accurately, place it face down on a stable, level surface.
Use a steel tape aligned at the inner rabbet edge to measure internal width and height.
Keep your eye level with the tape to avoid parallax errors.
Use calipers to check rabbet depth, guaranteeing it accommodates your artwork and mat thickness.
Record all dimensions to the nearest 1/8 inch, rounding up to guarantee a proper fit.
Understanding these basics sets you up to master detailed sizing and installation nuances.
Key Takeaways
- Measure the internal width and height precisely from inner rabbet edges using a steel tape measure aligned at zero point.
- Keep the tape taut and read measurements at eye level to avoid parallax errors and ensure accuracy.
- Use calipers to measure the frame and rabbet depth at the thickest point for artwork and mat accommodation.
- Add twice the mat border thickness to artwork dimensions when calculating external frame size for proper fit.
- Allow a margin by subtracting approximately 1.5 inches per side for lip overlap securing the artwork behind the mat.
Preparing Your Tools and Workspace for Frame Measurement
Before you start measuring a frame, gather all necessary tools and prepare your workspace to guarantee accuracy. Use a steel tape measure for precise width and height readings, making sure the zero point aligns exactly with the starting edge.
Gather tools and prepare your workspace to ensure accurate frame measurements with a steel tape measure.
Have calipers or a rigid ruler on hand to measure depth at the frame’s thickest point. Place the frame face down on a flat, stable surface to avoid skewed or inconsistent measurements.
Keep pen and paper nearby to record dimensions immediately, preventing memory errors. Clear any clutter around the workspace to maintain unobstructed access and visibility.
This setup minimizes common errors and ensures that your measurements are reliable and repeatable, setting a solid foundation before proceeding to dimension-specific tasks. Ensuring your workspace is level with a carpenters level can greatly improve measurement accuracy and consistency.
Measuring Width and Height Inside the Frame Rabbet
To get the best measurements for the width and height inside the frame rabbet, you’ll want to start by aligning your tape measure right along the inner edges of the rabbet.
This way, you’ll ensure that you’re capturing the most accurate dimensions.
Oh, and it’s super important to keep your eye level in line with the measurement marks.
This little tip helps you avoid any parallax errors, which can throw off your readings.
Trust me, taking this extra step will make sure your measurements really reflect the true opening size for your artwork.
For improved precision, always use a level or ruler to connect measurement points accurately.
Accurate Rabbet Edge Alignment
Focus on aligning your tape measure precisely with the inner edges of the frame rabbet when measuring width and height. This guarantees your readings reflect the true opening size for the artwork.
Position the tape so its zero mark touches the inside edge firmly, avoiding any gaps or overlaps. Keep the tape taut and straight, parallel to the rabbet edges. Measure at eye level to maintain accuracy.
| Measurement Step | Key Detail |
|---|---|
| Tape Positioning | Zero mark flush with rabbet |
| Orientation | Parallel to rabbet edges |
| Measurement Points | Inner left to right (width) |
| Inner top to bottom (height) | |
| Reading Precision | Use 1/8-inch increments |
Accurate rabbet edge alignment prevents errors in frame fitting and artwork display. When moving large frames or tools used for measuring, it is important to follow proper disassembly instructions to avoid damage during transport.
Preventing Parallax Measurement Errors
When measuring the width and height inside the frame rabbet, aligning your eye directly at the measurement mark eliminates parallax error, ensuring accurate readings.
Parallax occurs when you view the tape measure at an angle, causing distorted measurements. Position the frame on a flat surface and hold your head level with the inner edges of the rabbet.
Use a steel tape measure starting precisely at zero for both width and height, reading values at eye level. Avoid measuring from the outer frame edges, as only the inner rabbet edges define the artwork opening.
Keep the ruler steady and the environment free from visual obstructions. Ensuring a flat, stable work surface during measurement helps maintain precision and prevents errors caused by material movement.
Measuring Frame Depth and Rabbet Specifications
Although measuring width and height is essential, determining the frame depth and rabbet specifications guarantees your artwork fits securely and displays properly.

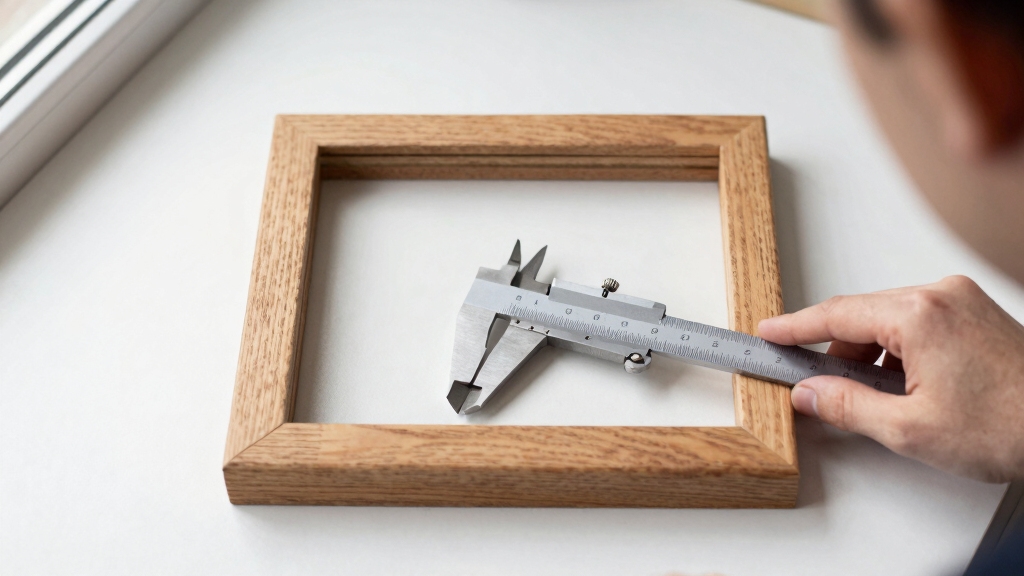

Use calipers to measure the frame’s thickest point for accurate depth. This typically ranges from 0.5 to 1 inch for standard matting.
Measure rabbet depth vertically from the glass plane to the bottom ledge, ensuring enough space for mats or thick artwork. Also, note the rabbet width and height as these define the opening size for your artwork placement.
Selecting the right tools with universal compatibility can ensure precision and ease when working with frames and cutting materials.
| Specification | Measurement Focus |
|---|---|
| Frame Depth | Thickest structural point |
| Rabbet Depth | Glass plane to bottom ledge |
| Rabbet Width | Horizontal opening for artwork |
| Rabbet Height | Vertical opening for artwork |
| Standard Depth Range | 0.5 – 1 inch (single mat applications) |
Recording and Interpreting Your Frame Measurements
Once you’ve gathered your width, height, and depth measurements, you need to record them accurately to avoid errors in frame selection or fabrication.
Note the width first, followed by height, using the inside rabbet edges as reference points. Include fractional measurements to the nearest 1/8 inch for precision.
Record depth at the thickest structural point using calipers or a ruler. Specify if the measurement is of the rabbet or overall frame thickness.
Use a consistent format, such as “Width x Height x Depth” in inches, to maintain clarity. Double-check measurements immediately after recording to catch any discrepancies.
Avoid mixing units—stick to inches or centimeters consistently. Round up fractional values to prevent undersizing.
Proper documentation guarantees your frame fits artwork precisely and supports accurate fabrication.
For optimal structural support and longevity, consider the material composition when selecting frame components.
Accounting for Mats and Artwork Margins in Measurements
After recording your frame’s internal dimensions, you’ll need to factor in mats and artwork margins to determine the final frame size. Mats add width and height depending on their border size, so measure their thickness accurately.
Typically, leave a margin of 0.04 to 0.12 inches on each side to allow for proper fit without pressure on the artwork. Also, subtract 1.5 inches from each side to accommodate the lip overlap that holds the artwork in place.
These adjustments assure the internal dimensions align precisely with the artwork’s visible area. When calculating external frame size, add mat thickness to your initial width and height measurements.
This method guarantees your frame will accommodate both the artwork and matting correctly without compromising fit or aesthetics. Using natural oils and waxes in furniture care can help preserve the frame’s finish and maintain its longevity over time.
Adjusting Measurements for Frame and Mat Thickness
When incorporating frame and mat thickness into your measurements, you must add their dimensions carefully to guarantee a proper fit.
Start by measuring the mat thickness precisely with calipers or a rigid ruler. Add this value to both width and height measurements to account for the mat’s depth.
Next, measure the frame’s rabbet depth at its thickest point to make certain it can accommodate the mat and artwork combined. Include this depth in your overall calculation to prevent crowding or gaps.
Remember to factor in any additional border width from the mat, increasing the frame’s external dimensions accordingly.
For mounting your framed piece securely, consider using heavy-duty brackets designed for strong, stable support and clean aesthetics.
Avoiding Common Errors When Measuring a Frame
Make certain accuracy by carefully aligning your tape measure’s zero point with the rabbet’s inner edge before taking any reading.
Avoid starting measurements beyond zero, as this skews your data.
Keep your eye level directly aligned with the tape mark to prevent parallax errors that can mislead your dimensions.
Assure the frame lies flat on a stable surface to avoid skewed width and height readings.
Don’t measure from the outer frame edges; always measure from inner rabbet edges to capture the true opening size.
Clear clutter around your workspace to maintain an unobstructed view and precise tape placement.
Using tools with laser guides and LED cutline illumination can help enhance measurement precision when working on frame projects.
Using Measurements to Choose the Right Frame or Artwork Size
To begin, you’ll want to match the artwork dimensions exactly with the frame’s rabbet measurements. This step is crucial to ensure a snug fit.
Once you have that sorted, don’t forget to consider the mat borders! Just add their width to the internal frame size, and make sure to adjust your calculations accordingly.
Now, let’s move on to calculating the external frame size. This is where you’ll combine the artwork dimensions, mat thickness, and frame depth to get the overall dimensions.
It’s a bit of math, but it’s essential for a polished final look! Proper measurement also helps avoid gaps and ensures accurate edge preparation for a clean finish.
Matching Art To Frame
Selecting the right frame for your artwork demands careful comparison of the measured internal frame dimensions with the art’s size. You need the art to fit snugly within the frame’s rabbet to avoid movement or damage.
Always match width and height precisely, accounting for a minimal margin (0.04–0.12 inches) for easy fitting. Use the table below to guide your selection:
| Frame Width (in) | Frame Height (in) | Recommended Art Size (in) |
|---|---|---|
| 16 | 20 | 15.9 x 19.9 |
| 12 | 16 | 11.9 x 15.9 |
| 8 | 10 | 7.9 x 9.9 |
| 24 | 36 | 23.9 x 35.9 |
Match the art slightly smaller than the frame’s internal dimensions to guarantee a secure fit without gaps.
Adjusting For Mat Borders
After confirming the artwork fits snugly within the frame’s internal dimensions, consider how mat borders affect the overall sizing.
Mat borders add measurable width and height, which you must factor into your calculations to guarantee a proper fit. Measure the mat border width precisely, then add twice this measurement to both the artwork’s width and height, since mats surround all sides.
Remember to subtract approximately 1.5 inches from each side to account for the lip overlap, which secures the artwork behind the mat. This adjustment guarantees the artwork is neither too tight nor loose within the mat opening.
Take note that mat thickness can influence depth requirements, so verify the frame’s rabbet depth accommodates both mat and artwork layers.
Calculating External Frame Size
Calculate the external frame size by adding the mat border thickness to the internal frame measurements.
Start with the internal width and height measured from rabbet to rabbet. Add twice the mat border thickness to each dimension.
For example, if the internal width is 12 inches and the mat border is 2 inches, the external width becomes 16 inches (12 + 2×2).
Apply the same for height.
Don’t forget to account for margins: subtract 1.5 inches per side from artwork size to guarantee proper fit inside the rabbet.
Use a steel tape measure for accuracy, aligning the zero point correctly to avoid errors.
Round up fractional measurements to the nearest 1/8 inch for consistent sizing.
This method guarantees your frame and artwork dimensions align perfectly for a professional finish.
Frequently Asked Questions
How Do I Measure an Irregular or Ornate Frame Accurately?
To measure an irregular or ornate frame accurately, focus on the inner edges of the rabbet for width and height, ignoring decorative outer edges.
Use a steel tape measure for straight sections. For curved areas, use flexible measuring tape or calipers for depth.
Place the frame on a flat surface to avoid distortion. Record measurements precisely, aligning your eye level to prevent parallax error.
Take multiple readings at critical points, then use the smallest consistent width and height.
Can I Use a Flexible Tape Measure Instead of a Steel One?
You can use a flexible tape measure, but it’s less precise than a steel one.
Flexible tapes bend and may not stay perfectly straight, risking inaccurate width and height readings.
For accurate frame measurements, especially on flat surfaces, a steel tape measure is ideal because it provides consistent, rigid alignment and precise zero-point starting.
Use flexible tape only if steel isn’t available, and be extra cautious to minimize measurement errors.
How Often Should I Recalibrate My Measuring Tools for Accuracy?
You should recalibrate your measuring tools at least every six months, or immediately if you drop them. One wrong bounce can throw off your entire project!
Regular recalibration guarantees your tape measure and calipers maintain precision, preventing cumulative errors in width, height, or depth readings.
If you use them daily or for critical work, check calibration monthly. Always verify zero-point alignment and inspect for wear to keep measurements spot-on and avoid costly mistakes.
What Is the Best Way to Measure Frames With Rounded Rabbet Edges?
When measuring frames with rounded rabbet edges, focus on the innermost curve to get an accurate width and height.
Use a flexible steel tape to contour along the rounded edge, ensuring zero-point alignment. For depth, use calipers at the thickest point near the curve.
Record measurements carefully, rounding up to the nearest 1/8 inch. Avoid parallax by aligning your eye level with the tape.
Place the frame on a flat surface for consistency.
How Do Temperature and Humidity Affect Frame Measurements?
Temperature and humidity cause frame materials like wood or metal to expand or contract, affecting your measurements.
You’ll notice slight dimensional changes; wood swells with moisture and shrinks in dry air, while metal expands with heat.
To guarantee precision, measure frames in stable, controlled environments.
Avoid measuring immediately after moving frames between different climates.
Allow time for material acclimation to minimize errors caused by environmental fluctuations.
The Secret to Perfectly Measuring a Picture Frame
When you measure a frame, you’re not just noting numbers. You’re aligning precision with aesthetics. Coincidentally, the exact fit you achieve secures both protection and presentation of your artwork.
By mastering width, height, depth, and rabbet details, you avoid costly mistakes. This guarantees your frame complements, rather than constrains, your piece.
So, take your measurements seriously. They’re the blueprint for a flawless, professional display every time.
