Best Concealed Hinge Jig: Top 10 Precision Tools Reviewed

Trying to drill concealed hinge holes without the right jig feels like guessing every time. Misaligned hinges, uneven doors, and annoying readjustments turn simple cabinet work into a headache.

The Kreg Concealed Hinge Jig nails precise 35mm cup drilling with a carbide-tipped bit for cleaner holes. GOINGMAKE goes metal and durable, adding a quick clamp and dust vacuum adapter for mess-free, stable drilling.

The XUNTOP jig stands out with its double clamps and adjustable drill guide for extra steadiness, cutting down errors in hinge placement.

Discover Precision with the Best Concealed Hinge Jigs

Precision and consistency are key when installing concealed hinges. These expertly designed jigs offer reliable drilling accuracy, making cabinet door projects smoother and more professional.

1. Kreg Concealed Hinge Jig – Precision 35mm Cup Drilling for Cabinet Doors

Getting a concealed hinge perfectly placed isn’t as straightforward as it looks. Many woodworkers rely on guesswork or bulky setups that don’t guarantee accuracy. The Kreg Concealed Hinge Jig changes that by allowing precise, repeatable drilling of 35mm cup holes with any hand drill.

This jig’s highlight is its four-cutter carbide-tipped bit designed for clean holes and controlled drilling depth, essential for European-style hinges. Unlike improvised methods, it delivers consistent results even if you aren’t a power tool expert, refining your cabinet door installation process.

The jig is thoughtfully adjustable to support hinge offsets from 3mm to 6mm, letting you tailor hinge placement depending on your cabinet design. You can position hinges as close as 2 inches from the door edge or space them freely for custom layouts, making it versatile for diverse projects.

Made from sturdy metal with a no-frills unfinished finish, this Kreg jig prioritizes function and durability. Maintenance is minimal—just keep the carbide bit sharp and free of debris. It arrives with both the jig frame and the specialized bit, so you have exactly what you need out of the box.

By focusing on usability and precision, it helps close the gap between a woodworking idea and a flawless outcome, saving time and reducing mistakes in cabinet door installation.

Best for: Woodworkers and cabinet makers seeking an accurate, adjustable jig for installing European-style concealed hinges.

What We Like:

• Precision carbide-tipped bit ensures clean, exact holes
• Adjustable hinge offset supports multiple standard sizes
• Flexible hinge placement allows for customized cabinet designs
• Works with any hand drill, no special tools required
• Compact, durable metal construction for reliable use

Specification:

Specification	User Benefit
35mm Cup Hole Boring	Enables precise, clean hinge cup drilling essential for concealed hinges
Four-Cutter Carbide-Tipped Bit	Delivers smooth holes with controlled depth for consistent results
Adjustable Hinge Offset (3mm-6mm)	Allows customizing hinge placement to match varying cabinet hardware
Metal Jig Construction	Offers durability and stability during drilling operations
Flexible Door Layout Capability	Supports hinge positioning from 2″ from edge to unlimited spacing
Includes Jig and Bit	Provides all necessary components to start hinge installation immediately
Compact Dimensions (8.3″L x 9.16″W)	Fits comfortably in standard workshops without cluttering space

2. GOINGMAKE Metal Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter

Ever noticed how precise concealed hinge installation remains a challenge even with modern tools? Many woodworkers settle for plastic jigs, assuming metal ones won’t make a big difference. But the GOINGMAKE Metal Concealed Hinge Jig changes that perception with its all-metal construction and built-in features that boost accuracy and ease.

Crafted from high-quality aluminum alloy, this jig promises durability where plastic jigs often fall short. Double bearings inside ensure smooth, continuous hole drilling, mimicking the control of a drill press but with far greater portability. The included 35mm carbide-tipped bit stays sharp, cutting through cabinet doors efficiently without sacrificing precision.

One standout feature is its integrated dust vacuum adapter. By connecting your vacuum directly, the jig minimizes dust clouding your workspace—a common nuisance that most hinge jigs overlook. This not only keeps your project area cleaner but also improves drilling accuracy by preserving visibility.

The quick clamp design helps stabilize workpieces rapidly, saving time and frustration during setup. Versatility comes from compatibility with different hinge offsets and screw hole spacings, making this jig suitable for a wide range of concealed hinges. Adjustable depth control further tailors drilling for perfect overlay hinges without guesswork.

Best for: Woodworkers seeking pinpoint accuracy and cleaner cabinet hinge installation with an easy-to-use, durable jig.

What We Like:

• All-metal aluminum build enhances durability over plastic alternatives
• Built-in dust vacuum adapter keeps work area clean and drilling precise
• Quick clamp mechanism for fast, stable setup on varying workpieces
• Supports multiple hinge offsets and screw hole patterns for versatile use
• Adjustable hole depth for consistent, accurate drilling every time

Specification:

Specification	User Benefit
Material: Aluminum Alloy	Provides sturdy construction for long-lasting, precise use
Hole Diameter: 35mm	Matches standard cabinet hinge size for accurate drilling
Dust Adapter Size: 1-3/8 inch	Fits most vacuum hoses to effectively capture dust at source
Clamp Design: Quick clamp	Allows fast and secure attachment to various workpieces
Depth Setting Range: 0 to 0.6 inch	Enables precise control over drilling depth for different hinge overlays
Included Drill Bits: 35mm carbide and 5/64 inch guides	Ensures sharp cutting action and correct screw hole placement
Supported Offsets: 2mm to 6mm	Accommodates most concealed hinge configurations

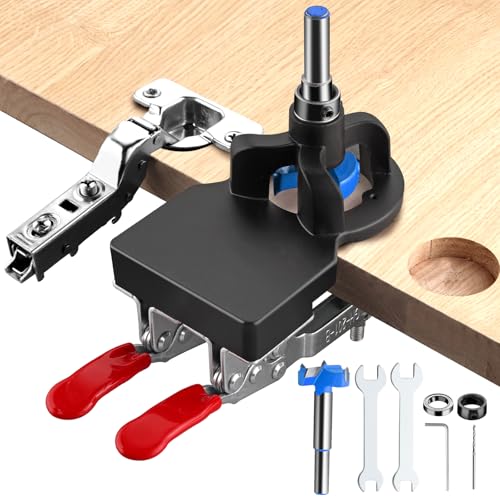

3. XUNTOP 35mm Concealed Hinge Jig – Precision Aluminum Alloy Cabinet Hinge Tool

Getting the perfectly aligned hinge hole every time can be surprisingly tricky. You might assume all hinge jigs handle this with equal precision, but the stability and adjustability of your tool make a huge difference.

The XUNTOP 35mm Concealed Hinge Jig is crafted from high-quality aluminum alloy, ensuring durability without rust or corrosion risks. Its precise manufacturing means accurate positioning for inset cabinet door hinges, cutting down on frustrating errors during installation.

This jig adjusts to fit wooden boards of various thicknesses, ideal for common hinges with a 35mm hole spaced 5mm from the edge. You can control the drilling depth from 10 to 15mm, making it versatile and easy to tailor to each job.

What truly sets this jig apart is the double clamp design, which adds stability and reduces movement while drilling. The built-in bearing sleeve also helps avoid drill bit binding — just remember to lubricate occasionally to keep it running smoothly.

The tool kit includes everything you need: the hinge drilling locator, a 35mm hole saw with stop ring, wrenches, drill bits, an Allen key, and a bearing. This makes it a well-rounded choice for both furniture factories and woodworking enthusiasts aiming for a clean, professional finish.

Best for: Woodworkers and cabinet makers seeking consistent, stable hinge installation with an adjustable, durable jig.

What We Like:

• Durable aluminum alloy resists wear and corrosion for long-term use
• Double clamp design ensures steady, precise drilling
• Adjustable guide fits standard 35mm hinges with customizable depth
• Includes full accessory kit for immediate setup and use
• Bearing sleeve reduces drill bit binding, extending tool lifespan

Specification:

Specification	User Benefit
Material Type: Aluminum Alloy	Lightweight yet strong for easy handling and lasting durability
Mounting Type: Door Mount	Designed specifically to align with cabinet doors for accuracy
Hole Diameter: 35mm	Matches standard concealed hinge cups for a perfect fit
Drilling Depth: Adjustable 10-15mm	Allows precise control suited to different hinge requirements
Double Clamp Mechanism	Increases jig stability, preventing slipping during drilling
Included Components	Comes with all tools needed for fast, hassle-free installation
Dimensions: 7.1″ L x 4.3″ W	Compact size makes it easy to maneuver in tight spaces

4. Milescraft 7300 Cabinet Kit – The Best Concealed Hinge Jig for Precision Cabinet Work

Finding the ideal jig to get perfectly aligned concealed hinges can feel like a puzzle you keep trying to solve. Why do some jigs require constant readjusting when precise, repeatable drilling is possible?

Milescraft 7300 Cabinet Kit challenges the idea that a single-use jig limits versatility. It combines multiple drilling tools into one bundle, making hinge installation, drawer slides, and shelf pin holes reliably accurate every time.

The Euro Hinge Jig stands out, with metal bushing drill guides that lock into place, ensuring the hinge cup hole is drilled perfectly straight and precisely positioned. Edge alignment knobs and indexing pins take the guesswork out of measurements, speeding up your workflow without sacrificing quality.

Durability is built in with hand-powered, robust components designed for repeated use. Its adjustable sliding stops lock securely, allowing you to switch between projects or doors easily while maintaining flawless alignment.

Maintenance is simple since the non-marring anti-slip pads protect surfaces, and the compact design keeps all tools organized within one kit. This is a comprehensive solution for serious cabinet makers looking for repeatable precision.

Best for: Woodworkers seeking an all-in-one jig bundle for precise concealed hinge installation and cabinet hardware drilling.

What We Like:

• Metal bushing drill guide ensures straight, accurate hinge cup holes.
• Adjustable sliding stops for consistent, repeatable positioning.
• Multi-function kit includes hardware, drawer, shelf pin, and hinge jigs.
• Non-marring pads protect cabinet surfaces during clamping.
• Spring-loaded, self-centering drill bit for perfect shelf pin holes every time.

Specification:

Specification	User Benefit
Metal bushing drill guide	Ensures perfectly straight and precise hinge holes for reliable fitting.
Adjustable sliding stops	Allows quick, repeatable placement on multiple cabinet doors.
Reversible cabinet handle jig	Switches easily between left and right doors without extra setup.
Non-marring anti-slip pads	Secure clamping without damaging delicate cabinet surfaces.
Spring-loaded self-centering drill bit	Keeps shelf pin holes perfectly aligned for European shelving standards.
Hand-powered operation	Simple, durable use without reliance on electric tools.
Multi-jig kit design	Combines hardware, hinge, drawer, and shelf jigs for versatile woodworking.

5. TOURACE Aluminum Concealed Hinge Jig with Clamp for Precise 35MM Hole Drilling

Mounting concealed hinges with perfect alignment can be deceptively tricky. Even minor errors in drilling can cause doors to hang unevenly or hinge movement to become stiff. The TOURACE Concealed Hinge Jig offers a practical solution that goes beyond basic guides, aiming to deliver professional results consistently on every project.

Crafted from durable aluminum alloy, this jig is engineered for stability and corrosion resistance. It stays firmly in place with a precise clamping mechanism, giving you clean, accurate holes without slippage. The design supports common hinge sizes—45mm, 48mm, and 52mm—making it adaptable for both American and European cabinet styles.

Setting it up involves an adjustable scale and a simple locking knob, so you can fine-tune the distance exactly before drilling. Because it includes a bearing to maintain consistent drilling depth, each hole is uniform, which simplifies door installation and adjustment afterward.

Accessories like multiple drill bits, wrenches, and a protective case make this a ready-to-use kit that reduces the guesswork and setup time. Maintaining the jig is straightforward thanks to the corrosion-resistant aluminum, ensuring it stays reliable with regular use.

Best for: Woodworkers and cabinet makers seeking a reliable jig for precise concealed hinge installation across various hinge sizes.

What We Like:

• Adjustable scale and locking knob ensure exact positioning every use
• Durable aluminum alloy resists corrosion and wear over time
• Supports multiple common hinge hole distances for versatile use
• Includes dedicated drill bits and tools for immediate operation
• Clamp-mounted for stable and steady drilling without shifts

Specification:

Specification	User Benefit
Material Type	Aluminum alloy construction ensures durability and longevity
Adjustable Distance	Allows customization to fit various hinge mounting needs
Supported Hole Sizes	Compatible with 45mm, 48mm, and 52mm hinges for broad applications
Mounting Method	Clamp design provides firm, slip-free positioning during drilling
Included Accessories	Complete kit reduces prepping time and need for extra tools
Color	Blue finish aids visibility and adds a professional look

6. Versatile Hinge Plate Jig Compatible with BLUM, SALICE, and GRASS Hinges

Precision in cabinet door installation often hinges on the right tool, yet many jigs leave half the work for guesswork. This hinge plate jig steps beyond traditional boring guides, ensuring the exact placement of hinge plates for seamless cabinet assembly.

Designed to accommodate face-frame, frameless overlay, and inset doors, it adapts effortlessly across common cabinet styles. One jig covers BLUM, SALICE, GRASS, and nearly all hinge plate models, cutting down the need for multiple tools.

The jig requires a Vix style bit (not included) to drill screw holes precisely where they belong, removing common guesswork and re-drilling hassle. Its dual-sided design caters to face-frame cabinets on one side and frameless on the other, addressing multiple cabinetry setups with a single tool.

Constructed from durable acrylic, it’s lightweight yet sturdy enough for repeated use. The unfinished finish preserves adaptability to various environments without wear from coatings. This jig doesn’t bore holes itself but guides their location accurately, facilitating faster and more reliable hinge installations.

Best for: Woodworkers and cabinet makers seeking a reliable jig that simplifies hinge plate positioning across diverse cabinet types.

What We Like:

• Works with 99% of hinge plates including BLUM, SALICE, and GRASS for broad compatibility.
• Dual-sided for face-frame or frameless cabinets, reducing tool needs.
• Guides screw placement precisely when used with a Vix style bit for cleaner door fitting.
• Lightweight acrylic construction ensures durability without added bulk.
• Simplifies installation by locating hinge plate spots instead of boring holes.

Specification:

Specification	User Benefit
Compatibility	Covers BLUM, SALICE, GRASS, and most hinge plates to reduce tool clutter.
Door Types Supported	Works with face-frame, frameless overlay, and inset doors for versatile use.
Material	Acrylic build balances durability and lightweight handling for prolonged use.
Mounting Type	Face mount style aligns with standard door installation methods.
Design	Dual-sided functionality addresses different cabinet styles without switching jigs.
Drill Bit Requirement	Requires Vix style bit to drill exact screw locations, ensuring accurate hinge attachment.

7. BEAMNOVA 35mm Adjustable Concealed Hinge Jig Drill Guide for Precise Cabinet Installation

Precise concealed hinge installation can be tricky without the right tool. The BEAMNOVA 35mm Hinge Jig offers a smart solution that goes beyond basic drilling guides. It empowers woodworkers to achieve accurate hinge placement consistently, removing the frustration of guesswork or misalignment.

Constructed from durable aluminum alloy, this jig is built to resist rust and corrosion during long-term use. Its wear-resistant drill bit guarantees longevity even after repeated projects. This combination of material and design ensures the jig maintains precision across many cabinet builds.

One of its standout features is the adjustable offset dial with increments from 3mm to 6mm. This allows tailoring the drilling position for different hinge types or door thicknesses, boosting versatility for modern cabinetry styles.

The included components simplify the drilling process. A clear step-by-step workflow guides users through positioning, drilling the 35mm hinge opening, and creating screw holes precisely. This reduces error and speeds up the overall installation.

Ideal for kitchen cabinets, wardrobes, or bathroom vanities, the BEAMNOVA hinge jig is suited for both hobbyists and professional carpenters. Its design excels in delivering clean, repeatable hinge mortises whether working with face-frame or frameless cabinet doors.

Best for: Woodworkers and DIY cabinet installers seeking precision in concealed hinge mounting without complex setups.

What We Like:

• Adjustable offsets from 3mm to 6mm for versatile hinge placement
• Durable aluminum alloy frame resists corrosion and wear
• Comes complete with drill bit, hole opener, and positioning tools
• Clear, step-by-step drilling process for consistent results
• Compatible with most 35mm cabinet hinges and door types

Specification:

Specification	User Benefit
Material: Aluminum Alloy	Ensures durable, rust-resistant use over many projects
Adjustable Offset: 3-6mm	Enables customized hinge alignment for various doors
Includes 35mm Hole Opener and 2mm Drill Bit	Ready to use for accurate hinge hole drilling out of the box
Weight: 1.63 pounds	Light enough for easy handling during installation
Package Size: 8.62 x 8.23 x 3.78 inches	Compact and organized for convenient storage

8. Chazcool 35mm Door Hinge Jig Kit for Precise Concealed Hinge Installation

Drilling perfect concealed hinge holes often demands precision that many jigs simply don’t provide. This can lead to misaligned doors and frustrating adjustments. The Chazcool 35mm Door Hinge Jig Kit challenges the assumption that hinge jigs are only for professionals by making precise installation accessible to anyone.

Designed with durable engineering plastic, this jig offers reliability for repeated use without worrying about wear. The kit includes a 35mm Foster drill bit and a depth stop, ensuring consistent drilling depth and diameter for flawless hidden hinge cups every time.

Installing cabinet or cupboard doors becomes straightforward, even for novices. Positioning the jig quickly locates the exact center for drilling hinge holes, removing guesswork and reducing errors. Its compatibility with various drilling tools provides flexibility across different workshop setups.

Furthermore, it handles a range of materials such as solid wood, plywood, and veneer, expanding its usefulness in varied woodworking projects. Although lightweight, the jig’s build ensures stability and repeatable results, improving the overall quality and appearance of your cabinetry work.

Best for: Home woodworkers and DIYers seeking an easy-to-use jig for precise 35mm concealed hinge installations.

What We Like:

• Durable engineering plastic construction resists wear for longevity
• Includes specialized 35mm drill bit and depth stop for consistent hole sizing
• Simple setup enables quick and accurate hinge positioning
• Compatible with multiple drill types for versatile use
• Suitable for various wood materials, making it adaptable

Specification:

Specification	User Benefit
Cutting Diameter: 35 mm	Fits standard 35mm concealed hinges ensuring a precise fit
Material Type: Plastic	Lightweight yet sturdy for ease of handling and durability
Shank Type: Straight	Compatible with most drill machines for flexible use
Tool Flute Type: Straight	Allows clean, controlled drilling of hinge cup holes
Point Style: Center Point	Ensures accurate drill starting point for precise hole placement
Number of Flutes: 2	Facilitates smooth chip removal during drilling
Minimum Bore Diameter: 1.4 inches	Accommodates various door thicknesses and hinge sizes

9. Jig It Concealed Hinges Drilling Guide Kit – Precision Installations Without a Drill Press

When it comes to installing concealed hinges, precision can make or break the entire project. But what if you could achieve flawless hinge cup holes without relying on bulky drill presses? The Jig It Concealed Hinges Drilling Guide Kit redefines how you approach cabinet hinge installation.

This kit gives you exact placement and drilling control using just a hand drill, turning awkward jig setups into a smooth, reliable process. Its clever design includes an integral spring clamp that locks the jig securely, meaning no tedious adjustments mid-job.

Another smart touch is the jig’s ability to rest steadily on your benchtop or floor, providing stable support as you drill. This stability helps craft a clean, straight hinge mortise every time, and when paired with simple blocks to support the door’s other side, it keeps your workpiece steady without fuss.

The system does require a long-shank Forstner bit sized to your hinge cups for optimal results, and carbide bits are recommended for durability. While setup lacks flashy electronics or complex adjustments, its straightforward, no-nonsense build responds well to the realities of small shops and on-the-go job sites.

Best for: Woodworkers and small shop professionals who need a space-saving, reliable jig for concealed hinge installation without a drill press.

What We Like:

• Enables precise hinge cup drilling using only a hand drill.
• Integral spring clamp maintains position without adjustments.
• Designed to rest solidly on benchtop or floor for stability.
• Ideal for on-site or small shop environments with limited space.
• Works with standard long-shank Forstner bits for versatility.

Specification:

Specification	User Benefit
Integral spring clamp	Secures jig firmly without need for manual adjustments
Benchtop and floor resting design	Provides firm, stable base for accurate drilling pressure
Compatible with long-shank Forstner bits	Allows clean, precise hinge cup holes matched to hardware size
Compact size and layout	Saves valuable workspace in small shops and jobsites
Unfinished material	Durable without excess coatings, easy to maintain over time
Single unit count	Includes all necessary components for hinge drilling tasks

10. Preciva All-Metal Concealed Hinge Jig with No-Measure Depth Stop and Dust Port

Getting perfect hinge cup holes without guesswork has often been a tough nut to crack—until now. The Preciva All-Metal Concealed Hinge Jig changes the game by offering a fixed-depth drill bit that stops precisely, eliminating the hassle of constant measurements.

This jig lets you drill clean, uniform holes every time, making loose hinges or damaged doors a problem of the past. Designed for efficiency, its quick-clamp system means you can secure the jig and drill in mere seconds, speeding through door batches without fumbling with adjustments.

One of its standout features is the integrated dust port. By connecting to your shop vacuum, the jig keeps the wood chips out of your workspace—no more dusty mess or difficult cleanup. This makes working neater and healthier, especially for those who prefer a clean workshop environment.

Versatility is baked in. The jig includes four preset offsets allowing for various door overlays and insets, plus three different screw patterns to fit major brands like Blum, Salice, and Grass. Crafted from CNC-machined aluminum, it resists warping or wear, promising consistent, precise results project after project.

Overall, this tool pushes concealed hinge installation into a new realm of speed, accuracy, and cleanliness. For anyone who installs European-style hinges regularly, it’s a tool that solves long-standing frustrations and wastes less time on tedious adjustments.

Best for: Woodworkers and cabinet makers who need consistent, dust-free hinge cup drilling for European-style concealed hinges.

What We Like:

• Fixed-depth drill bit eliminates guesswork and over-drilling.
• Integrated dust port keeps work areas clean by connecting to a vacuum.
• Multiple preset offsets accommodate various door styles easily.
• Compatible with major hinge brands via three screw patterns.
• Durable CNC-machined aluminum construction for lasting precision.

Specification:

Specification	User Benefit
Fixed 13mm Depth Stop	Ensures consistent hole depth for secure hinge mounting without extra adjustments
Integrated Dust Port	Keeps workspace clean by sucking away wood chips as you drill
Four Pre-Set Drill Offsets	Makes switching between full, half overlay and inset doors quick and easy
Three Screw Pattern Plates	Supports popular hinge brands seamlessly without needing multiple jigs
CNC Machined Aluminum Body	Provides sturdy, warp-resistant tool for precise, repeatable drilling
Quick Clamp Mechanism	Speeds up positioning so you can drill more quickly with less hassle
Compact Dimensions (8.66″ x 5.5″)	Fits easily in typical woodworking setups without crowding workspace

Technical Breakdown: Top Concealed Hinge Jig Features and Specs

Product Name	Material	Dimensions (L×W)	Mounting Type	Special Features
Kreg Concealed Hinge Jig	Metal	8.3″ × 9.16″	Plate Mount	Adjustable hinge positioning (3-6mm offsets), carbide-tipped bit
GOINGMAKE Metal Concealed Jig	Metal (Aluminum Alloy)	1.65″ × 0.43″	Door Mount	Quick clamp, dust vacuum adapter, 35mm carbide bit
XUNTOP Aluminum Alloy Jig	Aluminum	7.1″ × 4.3″	Door Mount	Double clamps for stability, adjustable drill guide, includes wrench set
Milescraft 7300 Cabinet Kit	Not Specified	14.92″ × 8.19″ (packaging)	Hand Powered	Multi-function jig set: hinge, shelf pin, drawer, handle drilling
TOURACE Aluminum Alloy Jig	Aluminum	Not Specified	Concealed Mount	Adjustable offsets (3-6mm), clamp included, supports multiple hinge distances
Multi-Jig Plate Jig	Acrylic	Not Specified	Face Mount	Compatible with Blum, Salice, Grass hinge plates; works for face-frame & frameless
BEAMNOVA 35mm Drill Guide	Aluminum Alloy	8.62″ × 8.23″	Not Specified	Adjustable offsets (3-6mm), includes drill bits and depth ring
Chazcool Door Hinge Jig Kit	Plastic	Not Specified	Not Specified	Includes 35mm Foster bit, depth stop, for woodworking doors

How to Pick the Best Concealed Hinge Jig for Flawless Cabinet Doors?

Choosing the right concealed hinge jig is about nailing precision and ease, two factors that directly impact the final look and functionality of your cabinet doors. With multiple options out there, knowing which features to prioritize can save you headaches and guarantee professional results.

Material Quality and Durability

Material quality defines a jig’s lifespan and the accuracy it maintains over repeated use. A flimsy material can warp or wear quickly, throwing off your measurements and leading to uneven hinge placement.

Most top jigs use aluminum alloy or sturdy metals, such as the GOINGMAKE and XUNTOP models, both designed to resist rust and maintain structural integrity. Aluminum alloys combine lightweight handling with specific hardness levels that withstand drilling stresses. Conversely, some jigs like the Chazcool model opt for engineered plastics, which offer ease of manufacture but may degrade faster under mechanical pressure.

Ignoring material durability often results in jigs that bend or shift during use—meaning your hinge holes might be off-center or misaligned. This compromises door fit and can cause long-term wear issues, forcing rework or replacement sooner than expected.

Adjustability and Offset Options

Adjustability determines the jig’s ability to cater to different hinge placements and door styles, which is crucial since cabinet doors vary widely in thickness and overlay requirements. A jig without adjustable offsets locks you into a single drilling pattern that might not fit every project.

Quality jigs, including the Kreg and TOURACE models, feature 3mm to 6mm adjustable offset settings. This flexibility lets you precisely position the hinge cup relative to the door edge, accommodating European-style concealed hinges and ensuring a snug fit. Mechanical clamps or slide mechanisms facilitate fast, repeatable position changes without recalculating every time.

Neglecting adjustability means you risk improperly placed hinges, resulting in doors that don’t close flush, hinge stresses, or visible misalignments—all avoidable with versatile offset features that adapt to your unique cabinet configuration.

Clamping Mechanism and Stability

Stability during drilling is a simple but vital feature. Even tiny movements or vibrations can ruin your hole alignment, producing off-centered or angled cup holes that affect hinge operation. The jig must hold firmly in place to guarantee repeatability.

The GOINGMAKE jig stands out with a quick clamp and dust vacuum adapter designed to grip securely while dust extraction keeps your workspace clean and visibility clear. Similarly, the TOURACE and XUNTOP models use strong clamps or dual clamp points to reduce jig movement. Materials with high-friction surfaces also improve grip, preventing slippage when applying drill pressure.

Ignoring jig stability causes inconsistent drilling results and wastes time correcting misplaced holes. A stable clamp enhances accuracy, reduces wear on drill bits due to wobble, and ultimately produces doors that open and close smoothly without binding or sagging.

Drill Bit Quality and Compatibility

Drill bits supplied or compatible with jigs play a decisive role in the cleanliness and precision of hinge cup holes. A dull or inaccurate bit creates rough edges that hinder hinge seating and cause uneven door alignment.

Top models like the Kreg Concealed Hinge Jig include a four-cutter carbide-tipped 35mm bit engineered for clean, burr-free holes with exact depth control. Carbide tips maintain sharpness longer than standard steel and stand up better to repeated use. Other jigs offer drill bits with depth stops or rings to prevent drilling too deep, protecting door integrity.

Using an incompatible or low-quality bit risks tearing the wood fibers, leading to chipped edges or poorly fitted hinges that rattle or loosen over time. Selecting a jig paired with durable, precision bits ensures consistent hole quality from the first cut.

Versatility Across Hinge Types and Door Styles

Versatility means the jig can handle multiple hinge brands and door designs, eliminating the hassle of tool switching or buying multiple jigs. Different hinges like BLUM, SALICE, or GRASS sometimes require subtle diameter or placement adjustments, while cabinet doors vary between face-frame, frameless, inset, or overlay styles.

The Versatile Hinge Plate Jig and Milescraft 7300 Cabinet Kit cater to this need by measuring and positioning for various hinge plates and multiple drilling requirements like shelf pins and drawer handles. Universal compatibility allows woodworkers to work on diverse cabinetry projects without compromising precision or efficiency.

Using a restricted jig can force compromises or lengthy adjustments with each new project, adding time and error risk. A versatile jig delivers a smoother workflow and future-proofs your toolset as hinge or door designs evolve.

Ease of Use and Setup Time

Ease of use plays just as much of a role as technical specs in achieving repeatable results. A jig that’s complicated to set up, requires constant re-alignment, or demands specialized knowledge can slow progress and increase frustration.

Models like the XUNTOP aluminum jig benefit from intuitive adjustment knobs, included wrench sets, and quick mount clamps that let you position and secure the jig with minimal fuss. Clear markings and stops reduce guesswork, while included accessories like dust adapters or drill guides improve overall handling and precision.

Skipping usability considerations often leads to botched setups, inconsistent drill hole placement, and a learning curve that costs time and lumber. A thoughtfully designed jig helps get perfect hinges faster, supporting both novice and seasoned craftsmen in productive workflow.

Frequently Asked Questions

Which concealed hinge jig offers the most precise drilling for 35mm cup holes?

Kreg Concealed Hinge Jig stands out for precision drilling of 35mm cup holes with its four-cutter carbide-tipped bit, allowing controlled depth for European-style hinges. Accuracy matters because it prevents misaligned hinges that cause doors to hang poorly or bind.

Its plate mount design with adjustable hinge positioning (3-6mm offsets) helps achieve repeatable accuracy, minimizing setup time. This jig suits cabinet doors requiring precise fit across multiple projects.

Pro tip: Always check the jig’s bit sharpness and depth stops before use to maintain consistent clean cuts throughout your work session.

Are metal jigs significantly better than plastic ones for concealed hinge installation?

Metal jigs like the GOINGMAKE Metal Concealed Hinge Jig generally provide greater durability and accuracy due to their rigid aluminum alloy construction compared to plastic versions. The metal body resists wear and flexing, which ensures consistent hole placement every time.

This particular jig includes a quick clamp system and a dust vacuum adapter, features that stabilize the jig and maintain a clean workspace—advantages seldom found in plastic alternatives.

Warning: Using metal jigs requires careful handling to avoid surface marring on delicate wood finishes; using a protective barrier can help.

What features make a concealed hinge jig versatile across different cabinet door types?

The Multi-Jig Plate Jig excels in versatility by accommodating various hinge plates such as BLUM, SALICE, and GRASS. It adapts to face-frame, frameless overlay, and inset doors, covering common cabinet styles.

This adaptability cuts down the need to purchase multiple jigs for different hinge brands or door styles, simplifying workflow for professionals managing diverse projects.

Pro tip: Verify compatibility with the exact hinge model before purchase, as some specialty hinges may require specific jigs or adapters.

Can a multi-function jig like the Milescraft 7300 Cabinet Kit reliably handle concealed hinge drilling?

The Milescraft 7300 Cabinet Kit is designed for precision with a suite of tools covering not only hinges but also drawer slides and shelf pins. Its Euro Hinge Jig component supports precise concealed hinge placement with reliable, repeatable drilling.

Its all-in-one nature enables DIYers and pros to reduce tool clutter and perform multiple operations with consistent accuracy, making it cost-effective for setups involving several cabinet elements.

Tip: Double-check measurements for each drilling application in the kit, as offsets can vary between hinge types, and accurate setup is key.

How important is clamping stability in achieving perfect concealed hinge installation?

Clamping stability is critical; without it, the jig can shift during drilling, causing imprecise holes and misaligned hinges. The TOURACE Aluminum Concealed Hinge Jig offers a robust clamping mechanism to firmly hold the jig in place, supporting consistent alignment.

This jig’s aluminum alloy construction and adjustable offsets (3-6mm) further enhance stability and adaptability to different hinge distances, preventing wobble that can ruin hinge placement.

Pro tip: Always test-clamp the jig without drilling to ensure zero movement and adjust your clamp pressure to avoid wood damage.

Elevate Your Cabinetry with Perfect Hinge Placement

Accurate hinge drilling removes guesswork, enabling woodworkers to achieve seamless cabinet doors with ease. Selecting the ideal jig improves not only precision but also the overall reliability of your installation process. This enhancement significantly elevates the quality and durability of your woodworking projects.

Heavy-duty steel jigs are best for professionals requiring maximum strength and long-term use, whereas lightweight aluminum options appeal to hobbyists who value portability without sacrificing accuracy. Those working with varied hinge types will benefit most from versatile kits designed for multiple applications.

Focus on a jig with a secure clamping system and customizable depth settings to match your door thickness. Using sharp drill bits and consistent drilling technique is crucial to prevent damage and maintain perfect alignment throughout every installation.

Last update on 2026-07-05 / Affiliate links / Images from Amazon Product Advertising API
