Best Shelf Pin Jig: Precision Drilling Made Easy in 2026

Frustration hits when shelf pins don’t line up right, making shelves crooked or unstable. Drilling uneven holes without a proper jig wastes time and ruins the finish of your cabinetry. You can almost hear the wobble before the shelf’s even in place.

Kreg’s jig uses hardened steel and an edge-aligned design to lock in perfect straight drilling every time. Milescraft takes a transparent route, letting you see exactly where you drill with its clear body and adjustable offsets. Big Horn closes the gap with a laser-cut acrylic template that nails precision for tricky edge distances.

Essential Tools for Precision: Choosing the Best Shelf Pin Jig

Achieving perfectly aligned shelf pins is crucial for sturdy and attractive cabinetry. Explore these expertly designed jigs that simplify drilling with accuracy and ease, enhancing every woodworking project.

1. Kreg 1/4-Inch Adjustable Shelf Pin Jig with Edge-Aligned Precision and Complete Drill Kit

Creating perfectly aligned, adjustable shelving can be surprisingly tricky without the right setup. Precision often gets compromised, leaving holes uneven or misaligned, which affects both function and aesthetics.

Ensure consistent, straight drilling with a hardened steel jig engineered specifically to register securely against cabinet edges. The design supports repeatable, professional-quality hole placement, eliminating guesswork during your woodworking projects.

Kreg’s tool includes everything needed for a smooth workflow: a drill bit, indicator pin, hex wrench, stop collar, and shelf pins, all in one compact kit. Its portability and efficient setup empower both DIY enthusiasts and workshop pros to tackle cabinetry with confidence.

Enjoy the advantage of precise 1/4-inch hole spacing that guarantees adjustable shelves fit perfectly every time. Durability meets practicality in a product that helps you close the gap between design and execution.

Best for: Woodworkers and craftspeople aiming for exact shelf spacing in cabinets and furniture installations.

Pros:

• Edge-aligned design ensures straight, uniform drilling
• Comes with a complete set of accessories for immediate use
• Made from hardened steel for durable, long-lasting performance
• Compact and lightweight for easy handling and portability
• Supports efficient and accurate drilling with 1/4-inch shelf pins

Cons:

• May require some practice to master edge registration perfectly
• Tool is hand-powered, which might slow down very large projects

2. Milescraft 1343 Precision Shelf Jig with Adjustable Offsets and Drill Bits

Creating perfectly aligned pin holes can make or break a cabinet’s functionality and appearance. This jig tackles common drilling inaccuracies by using a clear body construction, letting you visually confirm each placement before drilling. It comes equipped with two drill bits that support both 1/4 inch and 5mm hole sizes, expanding its usability across different shelving projects.

Precision is enhanced with standard 32mm spacing between hardened metal guide bushings, the trusted layout for modular shelving. A detachable fence permits quick switching to 37mm or 64mm offsets, adapting effortlessly to your project’s unique demands. Convenient centering notches simplify alignment, cutting setup time drastically.

Milescraft integrates 1/4 inch and 5mm indexing pins for repositioning with continuous hole series, so you never need to guess the spacing again. Its thoughtfully designed components minimize errors and provide consistent, accurate results every time you drill.

Though lightweight at 16 ounces, the jig offers robust metal guides and a depth stop for repeatable hole depths. It’s the kind of tool that feels engineered by someone who understands the frustrations of cabinet assembly and shelving alignment.

Best for: Woodworkers and DIY enthusiasts needing reliable hole spacing and adjustable settings for custom shelving and cabinetry.

Pros:

• Clear jig body reduces drilling mistakes
• Includes drill bits for two common pin hole sizes
• Adjustable fence offsets customize hole positioning
• Durable metal guide bushings with standard spacing
• Indexing pins allow for unlimited series of holes

Cons:

• Offset fence changes might require a moment to master
• Lightweight design may feel less robust for heavy industrial use

3. Big Horn Precision Shelf Pin Drilling Jig with Laser-Cut Alignment Template

Achieving perfectly spaced holes for shelf pins can unravel even the most patient woodworker. Laser-cut precision shapes every drill placement with consistent, centered results that manual measuring rarely delivers. Big Horn’s jig introduces a level of accuracy that streamlines cabinet and bookcase assembly.

A clear acrylic template offers unmatched visibility and precise alignment, eliminating guesswork. Multiple setback options with a reversible handle accommodate various edge distances, adapting seamlessly to your shelving needs.

Secure the jig firmly by locking it with a shelf pin during drilling, ensuring steady, wobble-free performance. The included self-centering drill bit, preset for depth, improves upon conventional brad-point bits by guaranteeing consistent hole dimensions.

Compatibility spans four drill bit sizes, allowing use with different pin diameters. Whether working on assembled cabinetry or faceless frames, the design adapts broadly without sacrificing accuracy. Big Horn’s tool challenges the assumption that precision jigging must be complex by offering intuitive, flexible features.

Best for: Craftsmen and DIYers requiring reliable, repeatable hole placement for adjustable shelving and cabinet projects.

Pros:

• Laser-cut template ensures exact hole spacing
• Clear acrylic for easy positioning and alignment
• Reversible handle supports multiple setbacks
• Includes self-centering drill bit preset for depth
• Works with four drill bit sizes for versatility

Cons:

• May require practice to maximize locking pin technique

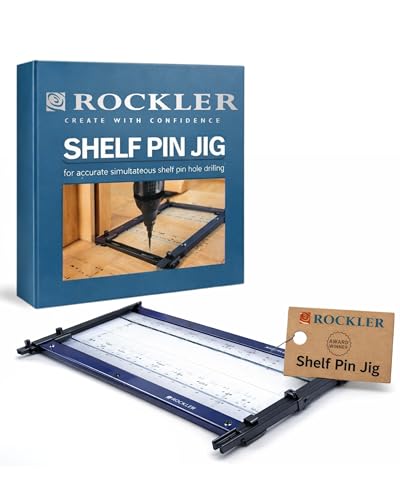

4. Rockler Pro Shelf Pin Jig with Adjustable Templates and Extended Drilling Guide

Precision in your cabinetry often hinges on perfectly straight shelf holes, yet many drilling guides falter with crooked, inconsistent results. Rockler’s innovative guide resolves this by delivering perfectly aligned holes every single time, cutting setup time dramatically and eliminating guesswork.

Constructed with thick, durable acrylic and rigid aluminum rails, this tool’s 24-inch extended template ensures rock-solid stability and error-free drilling. Dual template tracks maintain consistent spacing along large panels, enabling clean, repeatable craftsmanship with ease.

Adjustability plays a key role, featuring a 37mm hole spacing system that mirrors professional European cabinetry standards. With intuitive knobs for quick positioning, you can flawlessly drill multiple rows without any clamp interruptions thanks to an included clamp-free extension system.

Rockler’s attention to practical workflow details shines through in this jig, providing fast setup, easy mounting, and seamless hole alignment for both novice woodworkers and seasoned professionals.

Best for: Woodworkers and cabinet makers requiring precise, repeatable shelf hole alignment to enhance project quality and efficiency.

Pros:

• Ensures perfectly aligned holes without measuring guesswork
• Extended 24-inch acrylic drilling template with rigid rails
• Adjustable 37mm spacing system for European-style cabinetry
• Clamp-free extension system included for large panel drilling
• Fast, easy setup with multiple row drilling capability

Cons:

• May require practice for optimal adjustment in complex projects
• Large size might be cumbersome in very tight workspaces

5. Taylor Toolworks Shelf Pin Drilling Jig with 1/4″ Self-Centering Bit and 11-Hole Template

Achieve flawless alignment in creating adjustable shelving with this specialized jig. Precision-engineered to ensure quick, perfectly spaced holes, its layout maintains a consistent 1 1/4″ gap between pin locations, which saves time while maintaining quality.

The jig adapts to different cabinet depths, allowing holes drilled at either 1 1/2″ or 2 1/2″ from the edge for added flexibility. A self-centering 1/4″ drill bit accompanies the tool, guaranteeing clean, exact placements without wandering.

Thanks to the included indexing feature, continuous rows of holes on parts of any length can be handled without readjustment. The 19″ long frame accommodates numerous hole patterns rapidly, ideal for repetitive or custom cabinetry tasks.

Taylor Toolworks designed this as a reliable aid for woodworkers seeking both efficiency and accuracy. The lightweight yet sturdy construction makes it practical for both workshop and on-site jobs. Expect consistently neat shelf supports with minimal guesswork.

Best for: Woodworkers and custom cabinet builders requiring precise, repeatable shelf pin hole placement across various sizes.

Pros:

• Consistent 1 1/4″ hole spacing supports uniform shelving installation
• Option to drill at two different distances from edge adds versatility
• Self-centering bit reduces errors and improves precision
• Indexing system enables extended drilling runs without resetting
• Lightweight and rigid design balances portability with durability

Cons:

• May require careful setup to maintain alignment on uneven surfaces

6. ToolCreatrix 2-in-1 Aluminum Alloy Drill Guide for Shelf Pins and Concealed Hinges

Struggling to keep shelf holes perfectly aligned and hinges flawlessly positioned? This multi-functional jig tackles both tasks, merging the roles of shelf pin placement and concealed hinge drilling into a single tool. Achieve consistent hole spacing effortlessly thanks to an 11-hole guide that can extend for longer runs with included alignment pins.

Engineered with a stainless steel drill bushing, this ToolCreatrix jig offers exceptional durability and precision that outclasses typical iron bushings prone to wear and drift. Its aluminum alloy body provides a robust yet lightweight build suitable for repeated professional use.

Compatibility extends to common 1/4-inch and 5mm shelf pins, along with adjustable hinge margins to fit a wide range of cabinet doors. With everything you need in one box—including drill bits and alignment pins—you’re ready to begin without extra purchases or hassle.

Beyond kitchen cabinets, the guide is ideal for crafting bookshelves, wardrobes, or custom projects where clean, evenly spaced holes make all the difference. ToolCreatrix brings professional-grade quality, making shelf installation more reliable and hinge mounting more precise.

Best for: Woodworkers who demand accuracy and efficiency in drilling for cabinetry and furniture construction.

Pros:

• Dual-purpose design combining shelf pin and hinge drilling functions
• 11-hole guide allows batch drilling with perfect alignment
• Durable aluminum alloy and stainless steel components for longevity
• Adjustable hinge margins fit various door styles and hardware brands
• Complete kit with drill bits and alignment pins included

Cons:

• May require some practice to master batch drilling for longer runs

7. Bench Dog Compact Shelf Pin Jig for Precise, Stable Cabinet Shelving

Ensuring shelves stay perfectly level and wobble-free requires more than guesswork. The Bench Dog jig is engineered to deliver accurate, evenly spaced holes for 1/4″ shelf supports, eliminating common alignment frustrations during installation.

Designed with a non-slip rubber base, it maintains steady placement without slipping, boosting both precision and reliability. The sturdy construction helps keep your cabinet projects moving smoothly and accurately.

Compact and lightweight, this guide jig fits even the tallest cabinets and adapts with ease, boasting a fence for frameless models alongside a fence-free edge for aligning with face frames or backs. Its user-friendly design puts effective shelf pin drilling within easy reach.

Whether working with pre-built cabinets or customizing site-built ones, this versatile jig handles backs and face frames installed alike, making it a valuable tool for woodworking enthusiasts and pros. Bench Dog’s quality materials and thoughtful design provide a meticulous approach to shelving alignment.

Best for: Hobbyists and professionals seeking exact spacing and steadfast shelf supports in cabinet construction.

Pros:

• Consistent hole spacing for level shelves
• Non-slip rubber base enhances precision
• Compact and portable for versatile use
• Works with various cabinet styles including with face frames attached
• Easy self-centering design

Cons:

• May take practice to align perfectly on extremely irregular surfaces

8. WolfPawn 2-in-1 Aluminum Shelf Pin and Hinge Jig for Precise Cabinet Drilling

Drilling perfectly aligned shelf pin holes has never been this streamlined. The WolfPawn tool blends all-metal durability with highly adjustable guides, letting you quickly manage different hole sizes and positions without switching tools.

Crafted from quality aluminum alloy, it offers exceptional stability and friction resistance, essential for clean, repeatable results on wood cabinets. Its 14 detachable guide bushings accommodate 5mm and 1/4″ drill bits, ensuring precise straight holes every time.

Adjustability stands out with offsets of 1.5″, 2″, and 2.5″, allowing exact distance settings tailored to your shelf styles. The included positioning pin and stop ring help maintain consistent hole spacing for multiple rows.

Beyond shelf pins, its dual functionality supports standard concealed hinge drilling, with options to fit 35mm hinges and various margin sizes. WolfPawn’s inclusion of drill bits and a wrench completes what you need for a smooth project flow.

Best for: Woodworkers and DIY enthusiasts looking to simplify cabinet assembly with a versatile drilling jig that combines ease and precision.

Pros:

• Sturdy aluminum alloy construction for long-lasting use
• Two-in-one design supports both shelf pins and hinge holes
• 14 guide bushings for versatile hole sizing
• Adjustable offsets for customized installation
• Complete kit including drill bits and alignment tools

Cons:

• The aluminum jig may feel lightweight compared to steel options for some users
• Setup might require initial familiarization for precise holes

9. Kingson 2-in-1 Aluminum Alloy Shelf and Hinge Jig with Drill Bits for Cabinetry

Drilling precise and evenly spaced holes can transform a frustrating project into smooth craftsmanship. The Kingson 2-in-1 jig streamlines your workflow by allowing accurate drilling of shelf pins and concealed hinges without the usual guesswork.

Crafted from robust aluminum alloy, this tool provides long-lasting durability and consistent accuracy. Adjustability in hole spacing and edge distances lets you tailor each installation to your exact needs, reducing material waste and rework.

The clever integration of shelf pin and hinge drilling functions in one compact unit saves valuable time and workspace. Included drill bits sized 1/4″ and 5mm plus hinge screws ensure you’re ready to tackle various cabinet door and shelf projects.

Kingson’s focus on precision means you can count on perfectly aligned holes at 1-1/4″ intervals with every use. The practical storage case keeps everything organized and portable, supporting professional results even on complex woodworking tasks.

Best for: Craftsmen and DIYers who demand a versatile and reliable tool to streamline precise cabinet and shelf assembly.

Pros:

• Dual-function jig for shelf pins and hinges in one tool
• Adjustable hole spacing and edge distance for custom setups
• Durable aluminum alloy construction for accuracy and longevity
• Includes drill bits and hinge screws for all-in-one readiness
• Compact design with storage case for easy transport

Cons:

• Might require initial setup time to dial in adjustments perfectly

10. HALENBA All-Metal Shelf Pin Drilling Jig for Precise Woodworking and Cabinet Installation

Accurate hole alignment can make or break your shelving projects. Achieving consistent depth and spacing becomes effortless when you have the right tool to guide each drill precisely. The HALENBA jig lets you drill two common shelf pin hole sizes simultaneously, saving time without sacrificing accuracy.

Constructed from durable aluminum alloy, this jig resists wear while providing a stable frame for your work. Its seven hardened guide rails ensure that every hole remains perfectly straight, preventing misaligned pins that could destabilize your shelves. The inclusion of 32mm standard hole spacing means compatibility with most shelving hardware.

The clamping mechanism holds the jig firmly in place so that the drill never drifts off target, essential for clean holes that fit pins snugly. Woodworkers from beginners to experts will find its self-centering design easy to use, so inconsistent hole placement becomes a problem of the past. With multiple edge distances available, you can adapt it to various cabinetry designs.

Combining fixtures enables drilling multiple holes at once, boosting efficiency on larger projects. Incorporating HALENBA’s precise drilling guide can elevate your craftsmanship and speed, transforming tedious marking into streamlined operation.

Best for: Woodworkers and cabinetmakers needing reliable, exact hole placement for shelf pin installation.

Pros:

• Dual-size drilling capability for 1/4″ and 5mm holes
• Robust aluminum alloy frame with hardened guide rails
• Secure clamping ensures hole precision
• Standard 32mm hole spacing for wide hardware compatibility
• Multi-hole drilling increases project efficiency

Cons:

• May require practice to optimize multi-hole drilling fixtures

Key Specs Compared: Top Shelf Pin Jig Precision and Features

Product Name	Hole Sizes	Material	Features
Kreg 1/4″ Shelf Pin Jig	1/4 inch holes	Hardened Steel	Edge-aligned design, portable, includes drill bit and pins
Milescraft 1343 Shelf Jig	1/4 inch & 5mm holes	Hardened metal guide bushings	Clear body, 32mm standard spacing, detachable fence offsets
Big Horn 19651 Jig	Supports 1/4″, 5mm, 7/32″, 9/32″ bits	Clear acrylic template	Reversible handle, self-centering drill bit preset, multi-spacing
Rockler Shelf Pin Jig	1/4 inch holes with 37mm spacing	Acrylic, Aluminum, Rubber	Dual 24″ template tracks, clamp-free extension system
Taylor Toolworks SPG Jig	1/4 inch self-centering bit	Not specified	11 holes spaced 1¼” apart, 1.5″ or 2.5″ edge offset
ToolCreatrix 2-in-1 Jig	1/4″ & 5mm holes	Aluminum Alloy, Stainless Steel bushing	Combines shelf pin and hinge jig, 11 holes, all-metal
Bench Dog Compact Jig	1/4 inch holes	Rubber	Non-slip material, portable, fence for various cabinets
WolfPawn 2-in-1 Adjustable Jig	1/4″ & 5mm holes	High-quality Aluminum alloy	14 guide pins, adjustable offsets, includes drill bits

What Makes a Shelf Pin Jig the Best Choice for Your Project?

Choosing the right shelf pin jig can drastically improve the accuracy and professionalism of your cabinetry work. The key lies in how well the jig ensures perfectly aligned, evenly spaced holes every time, since small deviations can cause noticeable instability or misfit shelves.

Pinpointing the core features that impact drilling precision, ease of use, and versatility will help you find a jig that meets your specific woodworking demands. Looking beyond brand names, the technical details often reveal the real tool performance.

Drilling Accuracy and Repeatability

A shelf pin jig’s primary job is to guarantee precise, consistent hole placement along cabinet walls, critical for shelf stability and alignment. Inconsistent drilling causes shelves to wobble or fail to sit flush, spoiling both function and appearance.

The best jigs feature hardened steel drill bushings or similar guides that firmly hold the drill bit straight, preventing wandering or off-center holes. For example, Kreg’s steel jig registers securely on cabinet edges to produce repeatable, professional-quality holes every time. Some models integrate a fixed fence offset to automatically position the jig, eliminating manual measuring errors.

Ignoring drilling accuracy often means multiple misaligned holes, wasted time filling mistakes, and compromised cabinet integrity. Precision bushings and edge-aligned designs save frustration and rework down the line.

Material Quality and Durability

The construction material of a shelf pin jig directly impacts its lifespan, stability, and final hole precision. Durable materials withstand repeated use without wear that could cause wobble or loose tolerances.

Aluminum alloys and hardened steel dominate premium jigs, like the ToolCreatrix’s all-metal design with stainless steel bushings and WolfPawn’s rigid aluminum alloy construction. These materials resist bending and drilling forces unlike easily deformed acrylic or plastic. Meanwhile, some jigs pair acrylic templates with aluminum rails for balance between visibility and rigidity, such as the Rockler Pro Shelf Pin Jig.

Low-quality materials may introduce play or flex under pressure, resulting in crooked holes and inconsistent depth—outcomes that undermine the purpose of using a jig.

Adjustability and Hole Size Compatibility

Jigs that accommodate multiple hole sizes and allow adjustments for different cabinet dimensions offer greater flexibility across various projects. This adaptability can prevent the need for multiple specialized tools.

For instance, the Milescraft 1343 jig supports both 1/4 inch and 5mm holes, suitable for international and metric shelf pin standards. Big Horn’s jig excels with a range of supported drill bit sizes including 7/32″ and 9/32″ in addition to 1/4″ and 5mm. Adjustable fences and multiple preset setback positions also let craftsmen customize their hole spacing and edge offsets based on shelf design.

Using a jig limited to one hole diameter or fixed measurements can hinder customization, forcing compromises in shelf fit and sometimes requiring modification work.

Visibility and Alignment Aids

Precise hole placement depends largely on clear visibility of where the drill will make contact. Some jigs feature transparent parts or laser-cut templates that let you see exactly where you’re drilling, making the task more straightforward.

Big Horn’s acrylic template, for instance, offers an unobstructed view of your work area, allowing for perfectly centered alignment marks. This visual aid significantly cuts down on guesswork and mistakes. Other jigs come equipped with reversible handles or built-in rulers, making it easier to maintain consistent setups without needing extra measuring tools.

Using jigs lacking these features often results in off-center holes, splintering, or unstable shelves, risking the overall quality of your project.

Integrated Drill Bits and Template Features

Jigs equipped with dedicated, self-centering drill bits and built-in hole templates offer a streamlined approach to drilling. This combo provides a matched system designed to fit perfectly, eliminating the need for extra adjustments.

For instance, Taylor Toolworks supplies a 1/4-inch self-centering drill bit paired with an 11-hole template spaced at 1¼” intervals. This design enables quick, consistent drilling and greatly reduces the chance of bit wandering. The template’s guide bushings help ensure perfectly aligned holes, making assembly smoother and more reliable.

Choosing a jig without these integrated parts means hunting for compatible bits and risking mismatched sizes. That can lead to less accurate hole placement and ultimately compromise the fit and finish of your shelves or projects.

Frequently Asked Questions

What makes a shelf pin jig precise and reliable?

A precise shelf pin jig ensures holes are drilled straight and evenly spaced, which keeps shelves stable and visually pleasing. Jigs with features like hardened steel bushings or laser-cut templates provide consistent hole placement by preventing drill bit wobble.

For example, the Kreg 1/4-Inch Jig uses a hardened steel guide and an edge-aligned design to register firmly against cabinet edges, minimizing errors that occur from manual measuring.

Pro tip: Always double-check that the jig is securely positioned before drilling to avoid slight shifts that affect precision.

Can some jigs accommodate multiple hole sizes or adjustable spacing?

Certain jigs offer versatility by supporting different drill bit sizes or adjustable hole spacing to fit various shelving requirements. This flexibility helps when working on projects needing non-standard pin sizes or customized shelf layouts.

Milescraft’s Precision Shelf Jig supports both 1/4 inch and 5mm holes and features adjustable fence offsets, making it perfect for tailored shelf configurations.

Warning: Switching drill bit sizes requires confirming guide bushings can securely hold the bits to maintain drill stability.

Why would I need a combined shelf pin and hinge jig?

A combined jig lets you drill shelf pin holes and concealed hinge placements with one tool, saving setup time and ensuring aligned holes in both tasks. This dual functionality is ideal for cabinet builders aiming for efficiency and consistent accuracy.

The ToolCreatrix 2-in-1 Jig merges an 11-hole shelf pin guide with a hinge drilling system, crafted with durable aluminum and stainless steel bushings for long-lasting precision.

Tip: Before use, practice alignment on scrap wood to familiarize yourself with both jig functions perfectly.

How do extended templates and multiple tracks improve usability?

Extended templates increase hole drilling range, allowing longer shelves or multiple hole rows without repositioning the jig. Multiple guide tracks help maintain straight lines by offering stable, repeatable drilling spots across the length.

Rockler’s Pro Shelf Pin Jig stands out with dual 24-inch template tracks, providing firm support and clamp-free extension for even the largest cabinet projects.

Reminder: Use slow, steady drilling to keep the jig stable during long extensions and avoid shifting that ruins alignment.

What’s the benefit of self-centering drill bits in shelf pin jigs?

Self-centering bits reduce the risk of the drill wandering off the intended spot when starting the hole, enhancing accuracy and producing clean, perfectly centered holes.

Taylor Toolworks includes a 1/4-inch self-centering bit with their jig, ensuring holes are consistently drilled exactly where the template dictates, especially helpful for less experienced users.

Pro tip: Always keep the drill steady at the start, even with self-centering bits, to avoid angled holes or damage to the workpiece.

Finding the Best Shelf Pin Jig Makes All the Difference

Drilling shelf pins accurately can change a woodworking task from a struggle into a smooth process. A good shelf pin jig ensures each hole is spaced evenly and drilled straight, turning guesswork into reliable precision.

With the right jig, placing pins becomes repeatable and sharp, helping your shelves fit perfectly without hassle. This tool not only improves function but also lifts the overall look of your cabinets.

Choosing the best jig sets the stage for a clean, professional finish, making every shelf project feel rewarding and stable.

Picking the Jig That Matches Your Workshop Style

For simple 1/4-inch holes, the Kreg 1/4-Inch Adjustable Shelf Pin Jig offers sturdy steel parts and edge alignment for smooth drilling at cabinet edges.

If you want flexibility with hole sizes and hinge drilling, the ToolCreatrix 2-in-1 Aluminum Alloy Jig handles multiple tasks with ease. Some users prefer the Milescraft 1343 because its clear body lets you see what’s going on, while Rockler’s larger template suits those big or long jobs.

Finding your jig match means better workflow and results tailored to your style.

Start Your Shelf Pin Drilling with Confidence, But Mind the Details

Before drilling, make sure your cabinet edge fits the jig well to avoid angled or missized holes.

Lightly sanding and marking where the holes go will keep pins from drifting off-target. Using the recommended drill bits ensures clean holes, and firmly holding the jig against the edge prevents mistakes.

Thoughtful prep work helps your shelves sit tight, looking sharp and lasting longer.

Last update on 2026-05-03 / Affiliate links / Images from Amazon Product Advertising API
