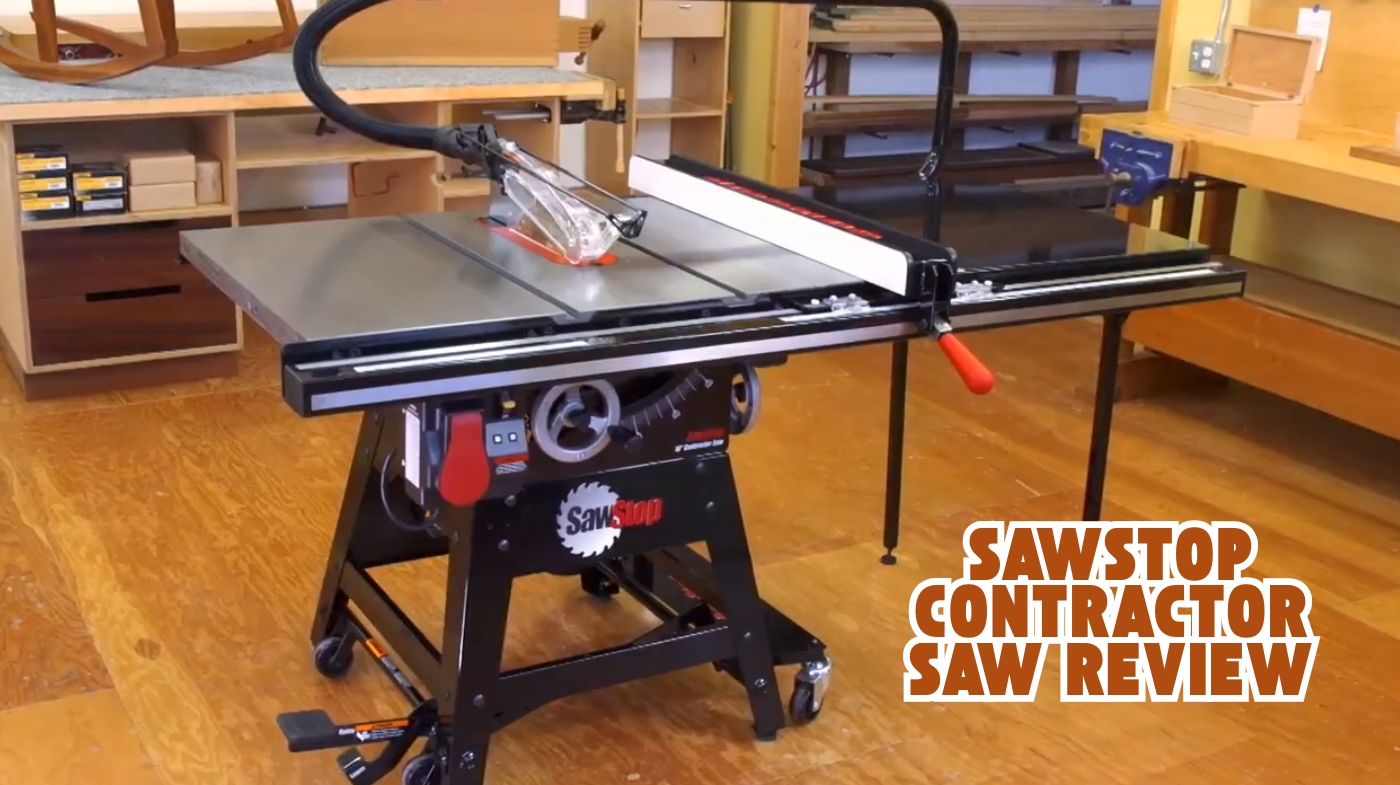

SawStop Contractor Saw Review: Key Features and Specs

You’ll appreciate the SawStop Contractor Saw’s unmatched safety with its electronic skin contact detection and rapid brake system, keeping blade injuries at bay.

The 1.75 HP motor delivers consistent power and smooth cuts through a precise 10-inch blade, while robust fences offer up to 36” rip capacity with minimal deflection.

Its cast iron table guarantees stability and vibration resistance, and integrated dust ports optimize cleanup. For full specs and setup insights, explore further details here.

Key Takeaways

• SawStop Contractor Saw features a patented electronic safety system that stops and retracts the blade within milliseconds upon skin contact.
• Equipped with a 1.75 HP motor and a 10-inch carbide-tipped blade, it delivers smooth, precise cuts with minimal vibration.
• Offers versatile fence options including 30” Premium and 36” T-Glide systems for accurate rip capacity up to 36 inches.
• Heavy cast iron table and extension wings provide durability, stability, and vibration resistance for professional-grade woodworking.
• Includes efficient dust collection with 2.5” and 4” ports and adjustable legs for stable setup on uneven floors.

Safety Features of the SawStop Contractor Saw

Although no safety system can completely eliminate the risk of injury, the SawStop Contractor Saw incorporates a highly responsive electronic detection mechanism that senses skin contact with the blade.

It instantly activates a spring-loaded brake to stop and retract the blade within milliseconds, substantially reducing potential harm.

You’ll appreciate that this system measures a subtle electrical signal disrupted by human skin, triggering rapid brake deployment regardless of blade speed.

However, effectiveness depends on blade type, contact speed, and direction. The saw features a patented brake system that enhances user safety by quickly stopping the blade. Proper handling and awareness are critical for safe operation with this technology.

The saw includes multiple safety and warning labels, emphasizing the need to read all documentation carefully, as the system minimizes but doesn’t guarantee injury prevention.

You can disable the system via bypass mode for specific cuts, but this removes protection, increasing injury risk.

Motor Specifications and Performance

When you power up the SawStop Contractor Saw, its 1.75 HP TEFC motor delivers consistent torque and blade speed optimized for contractor-grade cutting tasks. Proper setup and maintenance of the motor contribute significantly to cutting precision and overall saw performance.

Operating primarily at 120V and 14A, this single-phase motor’s Totally Enclosed Fan Cooled design prevents dust ingress, enhancing durability and reducing maintenance.

Operating at 120V and 14A, this single-phase motor’s TEFC design blocks dust, boosting durability and cutting maintenance.

Its compact 17.3 × 11.2 × 11.4-inch frame integrates efficiently into the saw housing, weighing around 40 lbs, and contributes to low vibration and noise levels.

The motor employs motor pulleys and V-ribbed static dissipative belts to optimize power transmission and minimize static buildup. Dual voltage compatibility (115/230V) and steady blade speed ensure smooth performance under load.

This motor is specifically designed for use with PCS175 Model SawStop Saws, ensuring proper operation and compatibility. You’ll appreciate its robust construction, reliable startup, and minimal downtime, all critical for demanding jobsite environments.

Blade and Cutting Capabilities

Because precision and versatility are critical in contractor-grade saws, the SawStop Contractor Saw features a 10-inch, 40-tooth professional-grade blade with a 5/8-inch arbor and a narrow 0.118-inch kerf that balances cutting speed and material preservation.

Its blade is made from carbide-tipped material, providing enhanced durability and resistance to wear. The blade tilts left with a maximum alignment displacement of 0.010 inches relative to the miter slot, ensuring precise angled cuts.

You can achieve a maximum depth of cut of 3 1/8 inches at 0° and 2 1/4 inches at 45°, suitable for a wide range of woodworking tasks.

The saw accommodates an 8-inch dado set up to 29/32 inches wide, with a riving knife thickness of 0.090 inches to minimize kickback. These features collectively offer you reliable, accurate cutting performance.

Additionally, the saw is powered by a 1-3/4 HP motor that provides sufficient power for both hobbyists and professionals, ensuring smooth and consistent cuts. The motor speed and power output are optimized for both cutting efficiency and safety, balancing RPM with torque for various materials.

Fence System and Rip Capacity

Selecting the right fence system substantially impacts your cutting accuracy and rip capacity on the SawStop Contractor Saw.

You can choose between the 30” Premium Fence System or the 36” T-Glide Fence System, each offering distinct advantages tailored to your workspace and project scope.

Both systems provide robust construction and precise adjustability, ensuring consistent, deflection-free cuts. The cast iron table top enhances overall saw performance and stability, complementing the premium fence’s smooth operation. Regularly checking alignment helps maintain this precision over time.

Key points to contemplate:

1. Rip Capacity: The Premium system offers 30” right and 12” left rip capacity. T-Glide extends this to 36” right, ideal for larger panels.
2. Fence Precision: Both fences lock securely, maintaining alignment and smooth operation.
3. Customization: Modular design and upgrade options let you tailor fence performance and size to your needs.

Table Construction and Build Quality

Beyond fence systems and rip capacity, the SawStop Contractor Saw’s table construction and build quality play a significant role in ensuring both stability and precision during operation.

You’ll appreciate the cast iron table and extension wings that provide a vibration-resistant platform. The table’s flatness stays within 0.016″, and arbor runout is limited to 0.001″, ensuring accuracy.

Regular calibration with a table saw alignment gauge helps maintain this precise performance over time. Adjustable legs let you stabilize uneven floors, while the 1.75 HP motor delivers consistent power.

The 5/8″ arbor fits standard 10″ blades, and dust collection is efficient with a 4″ port. The saw is available with multiple rip fence options, such as the 30-inch Aluminum and 52-inch T-Glide, to accommodate different woodworking needs and preferences rip fence options.

Adjustability and User Controls

While adjusting the blade angle and height on the SawStop Contractor Saw, you’ll find the controls conveniently accessible above the table, allowing for quick, precise modifications.

The large handwheels for tilt and elevation operate smoothly, supported by built-in limit stops to prevent over-adjustment.

The blade-to-slot parallelism is impressively tight, measured at 0.002-in. over 8 in., ensuring consistent accuracy. This model features a 5/8-inch arbor diameter and no-load RPM of 4,000, aligning with standard performance specifications for contractor saws.

The saw lacks adjustable blade-to-brake gap settings but compensates with a reliable riving knife and full blade guard for safety.

Key features include:

1. Intuitive elevation and tilt controls with positive stops for accuracy
2. Integrated safety system that can’t be disabled, ensuring consistent protection
3. Onboard accessory storage for easy access and efficient workflow

Available Accessories and Configurations

You’ll find SawStop contractor saws compatible with a broad range of accessories designed to enhance both safety and cutting precision. Their modular configuration options let you customize fence systems, table inserts, and mobile bases to fit your specific workflow.

This flexibility guarantees your setup adjusts seamlessly to varied cutting tasks and workspace demands. Using a miter saw stand can improve stability and provide a comfortable working height for enhanced precision and safety.

Accessory Compatibility Options

When outfitting your SawStop Contractor Saw, you’ll find an extensive range of accessories engineered for seamless compatibility and optimized performance. Every component, from blades to dust collection systems, integrates flawlessly with the saw’s advanced safety and cutting mechanisms.

Key accessory compatibility options include:

1. Blade and Cartridge Systems: Standard 10″ and specialized dado blade cartridges fit perfectly, with extra cartridges minimizing downtime. Regular maintenance and sharpening using circular saw blade sharpeners can significantly extend the life of your blades.
2. Dust Collection Attachments: Custom Y-Port and overarm dust collectors efficiently manage debris, compatible with contractor models. Additionally, some users consider adding storage accessories like the Cabinet Saw Accessories Box designed for organized tool storage in compatible saw setups.
3. Precision Miter Gauges and Storage: Tailored miter gauges improve angle accuracy, while dedicated storage solutions keep your workspace organized. Stable and vibration-minimizing accessories help ensure precise cuts and safe operation.

Configuration Flexibility Features

Although the SawStop Contractor Saw comes standard with a 110-120V power configuration, you can tailor its electrical setup to suit specific job site requirements, including modifications for 208-240V operation.

Keep in mind, the included contactor box only supports 110-120V motors, so switching to 208-240V requires a separate power cord, plug modifications, and strict adherence to wiring schematics.

Blade adjustments let you handle various material thicknesses and bevel cuts with user-adjustable tilt stops and quick-release clamps. For enhanced cutting versatility, understanding how to convert a circular saw into a miter saw can provide additional options for angled cuts.

You can choose from premium fences (30”, 36”, or 52”) and add steel extension wings or a cast iron wing assembly for enhanced table rigidity. The 52” fence system is not compatible with the Contractor Saw mobile base due to length.

Mobility is also flexible: screw-in feet or mobile bases improve portability and setup efficiency, adapting the saw to your specific workflow and site demands.

Dust Collection and Workspace Integration

You’ll appreciate the SawStop Contractor Saw’s dust collection panel, which offers both 2.5” and 4” ports to fit most shop vacuums and dust systems seamlessly.

Its compact design minimizes workspace footprint while ensuring secure attachment to the blade shroud for efficient dust capture.

This integration optimizes air quality and keeps your cutting area clean without compromising saw performance.

The system includes quick connect ports for efficient setup and easy installation on the Contractor Saw stand for hose management.

Its design also supports large wood pieces cutting, making it suitable for various woodworking projects.

Dust Collection Features

Since effective dust collection is essential for maintaining air quality and workspace cleanliness, the SawStop Contractor Saw incorporates a versatile dust collection panel (CNS-DCP) featuring dual 2.5″ and 4″ ports.

This design guarantees compatibility with most dust collection systems while maintaining easy installation and maintenance. The system is also compatible with 4-inch dust collection tubes, ensuring seamless integration with existing setups.

Key dust collection features include:

1. Under-table shrouding that funnels dust efficiently to the ports, minimizing airborne particles.
2. Direct hose attachment options, allowing connection either directly to the saw or via the panel for flexibility.
3. Optional upgraded blade guard enhancing above-table dust capture for improved performance.

Constructed from durable steel and designed for minimal saw modification, the dust collection system integrates smoothly into your workshop infrastructure without compromising saw operation.

Workspace Footprint Considerations

When planning your workshop layout, understanding the SawStop Contractor Saw’s footprint is essential to guarantee smooth integration with your dust collection setup and workflow.

The saw’s overall dimensions, especially with the 36” T-Glide fence, reach roughly 69⅛” wide and 45″ deep, requiring ample clearance for operator movement and dust duct routing. This premium fence and rail system enhances precision.

The dust collection port’s 1½” outer diameter protrudes slightly on the right side, demanding space for duct elbows without obstructing access.

The heavy 256-lb saw, with optional cast iron wings, calls for stable placement on a compatible surface height of 34¾”. The saw also features a durable cast iron table measuring 20″ W x 27″ D, contributing to its solid build.

Anticipate additional workspace for table extensions and outfeed supports, ensuring ductwork doesn’t interfere with material handling or control accessibility.

Integration With Shop Vacuums

Properly planning the SawStop Contractor Saw’s footprint sets the stage for effective dust collection integration, especially with shop vacuums.

The saw features the CNS-DCP dust collection panel with both 2.5″ and 4″ ports, making it compatible with most shop vacuums.

This dust collection panel is a special order item made in Taiwan, typically shipping within 5-12 days. Installation is straightforward, fitting seamlessly onto the saw and enabling efficient dust extraction from both above and below the table via a custom Y-Port.

This integration reduces airborne particles and maintains workspace clarity.

Key points to consider:

1. Port Compatibility – Choose between 2.5″ or 4″ shop vacuum hoses for ideal connection.
2. Over-Arm Assembly – Connects directly to the dust collection blade guard for superior dust capture.
3. T-Glide Rail Fitment – Ensures smooth integration without compromising saw mobility or safety.

Portability and Jobsite Usability

Although the SawStop Contractor Saw isn’t the lightest or most portable model in the SawStop lineup, it strikes a balance that favors shop stability over frequent transport.

The SawStop Contractor Saw prioritizes shop stability rather than ease of frequent transport.

Weighing 225 lbs without the fence and 256 lbs assembled, it demands two people or a mobility base for movement.

Its sizable footprint (up to 85.25″ W with wings) requires ample shop space, limiting jobsite flexibility. The saw’s design balances power and portability effectively, making it suitable for various tasks despite its weight.

Mobility options like the Mobile Base and Mobile Cart aid repositioning but don’t convert it into a true jobsite saw.

The cast-iron table and robust fence ensure precision, ideal for semi-permanent setups. However, you’ll need stable, level surfaces and time for setup—no quick-disassembly features exist.

Frequently Asked Questions

Does the Saw Come With Any Pre-Installed Blades?

You’ll find a 10-inch diameter blade with 40 teeth pre-installed on the saw, offering professional-grade cutting right out of the box.

This combination blade features a 5/8-inch arbor and a 0.118-inch kerf, balancing versatility and compatibility. It supports left-tilt bevel cuts and integrates perfectly with the saw’s safety system.

While the included blade suits general woodworking, you can easily upgrade to specialty blades for specific tasks or materials.

Are Replacement Parts Readily Available for This Model?

Yes, replacement parts for your SawStop contractor saw are readily available. You can get them through local authorized dealers or directly from SawStop’s official parts store online.

Most common components like brake cartridges, blades, fences, and mobile bases are in stock. Shipping usually takes 1 to 4 business days, with some vendors offering same-day dispatch. Make certain you know your model number to order the correct parts efficiently.

How Noisy Is the Saw During Operation?

You’ll find the saw operates at around 81 dB at ear height, which is quieter than many comparable tools. Its 3HP motor runs smoothly with minimal vibration, keeping noise levels consistent without spikes.

The cabinet-style design helps muffle sound, allowing conversation nearby. Even during cutting, noise remains subdued.

Is Assembly Required Upon Delivery?

Yes, assembly is required upon delivery. You’ll receive the cabinet and table mostly preassembled on the stand, but major components like the motor, belt guard, hand-wheels, and fences need installation.

Expect to spend 1-2 hours using standard hand tools to bolt everything securely, including mounting the rip fence before use. Following the detailed manual is essential for proper alignment, stability, and safety compliance before powering the saw.

A Reliable Partner for Serious Woodworkers

As you wrap up your evaluation of the SawStop Contractor Saw, imagine its safety system instantly halting the blade just as precision meets power.

You get a motor that delivers consistent performance, paired with a rigid fence and a spacious table that support your cuts flawlessly.

Every adjustment feels intuitive, and dust collection keeps your workspace clean—coinciding perfectly with the saw’s portability. This combination makes it a reliable tool for any jobsite demanding both accuracy and safety.
